HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS
.png)
HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS

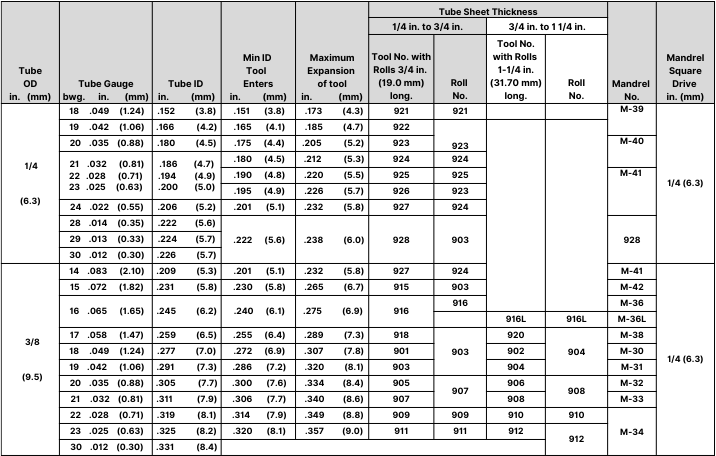

H-900 SERIES HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS
RANGE: 1/4" TO 3/8" (6.30 TO 9.50 mm)
This product generates better expansion results and often cover the widest range of
tube sizes and work well in many different applications. Expanders are supplied with an
adjustable collar for adjusting expansion length in various tube sheet thickness.
OIL COOLERS
| RANGE |
FITTED WITH 3/4" (19.0) LG. ROLLER |
FITTED WITH 1 1/4" (31.7) LG. ROLLER |
|---|---|---|
| MINIMUM A. |
6.3 MM (1/4") |
19.0 MM (3/4") |
| MINIMUM B. |
19.0 MM (3/4") |
13.7 MM (1/4") |
.png)
.png)
HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS

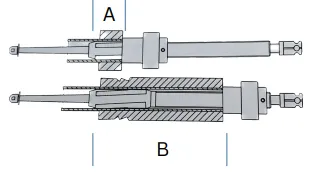

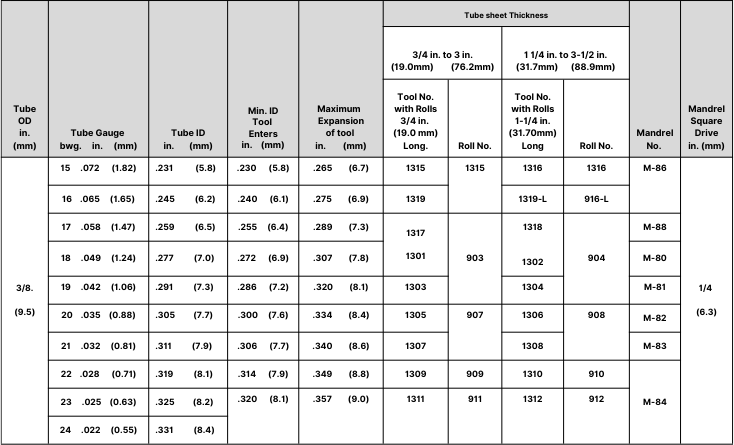

H-1300 SERIES HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS
RANGE: 3/8" (9.5 mm)
This product generates better expansion results and often cover the widest range of
tube sizes and work well in many different applications. Expanders are supplied with an
adjustable collar for adjusting expansion length in various tube sheet thickness.
| RANGE |
FITTED WITH 3/4" (19.0) LG. ROLLER |
FITTED WITH 1 1/4" (31.7) LG. ROLLER |
|---|---|---|
| MINIMUM A. |
19.0 MM (1/4") |
31.7 MM (3/4") |
| MINIMUM B. |
76.2 MM (3/4") |
88.9 MM (1/4") |
.png)
HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS

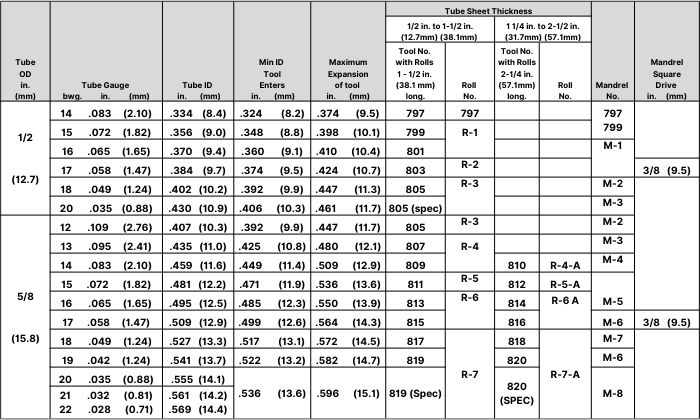

H-800 SERIES HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS
RANGE: 1/2" TO 1 1/2" (12.7 TO 38.1 MM)
This product generates better expansion results and often cover the widest range of
tube sizes and work well in many different applications. Expanders are supplied with an
adjustable collar for adjusting expansion length in various tube sheet thickness.
| RANGE |
FITTED WITH 1 1/2" (38.1) LG. ROLLER |
FITTED WITH 2 1/4" (57.1) LG. ROLLER |
|---|---|---|
| MINIMUM A. |
19.0 MM (1/4") |
31.7 MM (3/4") |
| MINIMUM B. |
76.2 MM (3/4") |
88.9 MM (1/4") |
.png)
HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS
H-800 TYPE FIVE ROLLER EXPANDER
RANGE: 1/2" TO 1 1/2" (12.7 TO 38.1 MM) OD
| RANGE |
FITTED WITH 1 1/2" LONG ROLLER (38.1) |
FITTED WITH 2 1/4" (57.1) LG. ROLLER |
|---|---|---|
| MINIMUM A. MINIMUM B. |
12.7 MM(1/2") 38.1MM(1 1/2") |
31.7 MM(1 1/4") 57.1 MM(2 1/4") |
.png)
HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS

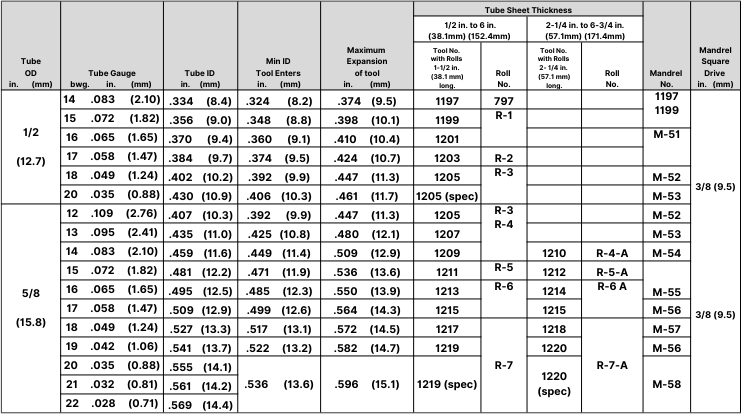

H-1200 SERIES HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS
RANGE: 1/2" TO 1 1/2" (12.7 TO 38.1 MM) OD
This product generates better expansion results and often cover the widest range of
tube sizes and work well in many different applications. Expanders are supplied with an
adjustable collar for adjusting expansion length in various tube sheet thickness.
| RANGE |
FITTED WITH 1 1/2" (38.1) LG. ROLLER |
FITTED WITH 2 1/4" (57.1) LG. ROLLER |
|---|---|---|
| MINIMUM A. |
12.7 MM (1/2") |
38.1 MM (1 1/4") |
| MINIMUM B. |
31.7MM (1 1/4") |
57.1 MM (2 1/4") |
.png)
.png)
HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS

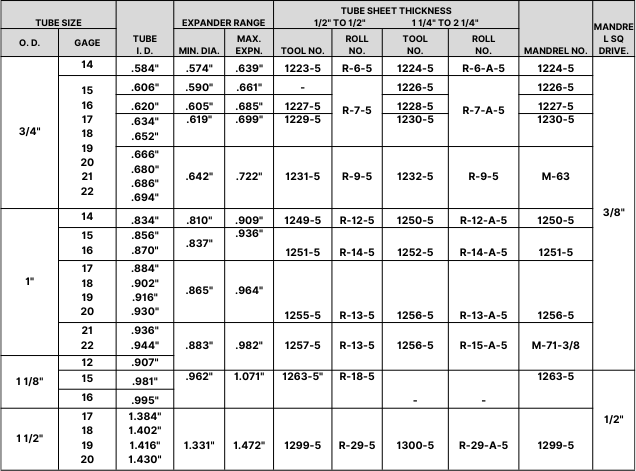

H-1200 TYPE FIVE ROLLER EXPANDER
RANGE: 1/2" TO 1 1/2" (12.7 TO 38.1 MM) OD
This product generates better expansion results and often cover the widest range of
tube sizes and work well in many different applications. Expanders are supplied with an
adjustable collar for adjusting expansion length in various tube sheet thickness.
| RANGE |
FITTED WITH 3/4" (19.0) LG. ROLLER |
FITTED WITH 1 1/4" (31.7) LG. ROLLER |
|---|---|---|
| MINIMUM A. |
38.1 MM (1 1/2") |
152.4 MM (6") |
| MINIMUM B. |
57.1 MM (2 1/4") |
171.4 MM (6 3/4") |
.png)
.png)
HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS

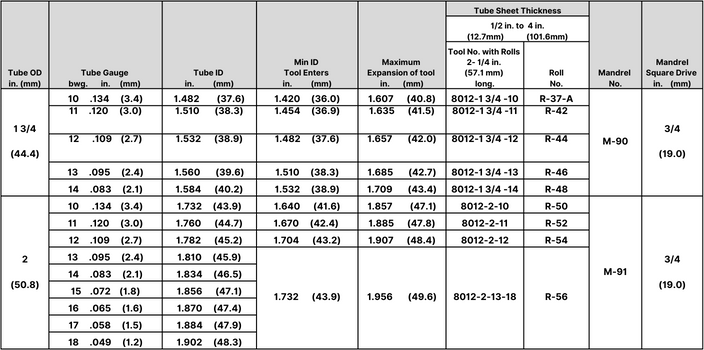

H-8012 SERIES HEAT EXCHANGER AND CONDENSER TUBE EXPANDERS
RANGE: 1 3/4" TO 3" (44.4 TO 72.2 MM) OD
This product generates better expansion results and often cover the widest range of
tube sizes and work well in many different applications. Expanders are supplied with an
adjustable collar for adjusting expansion length in various tube sheet thickness.
| RANGE |
FITTED WITH 2 1/4" (57.1) LG. ROLLER |
|---|---|
| MINIMUM A. |
12.7 MM (1/4") |
| MINIMUM B. |
101.6 MM (4") |
.png)

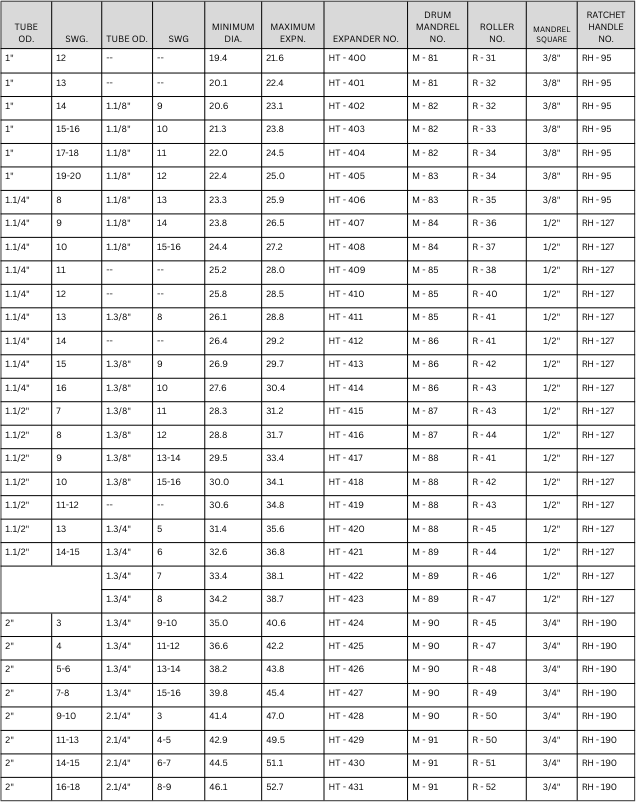

BOILER TUBE EXPANDER

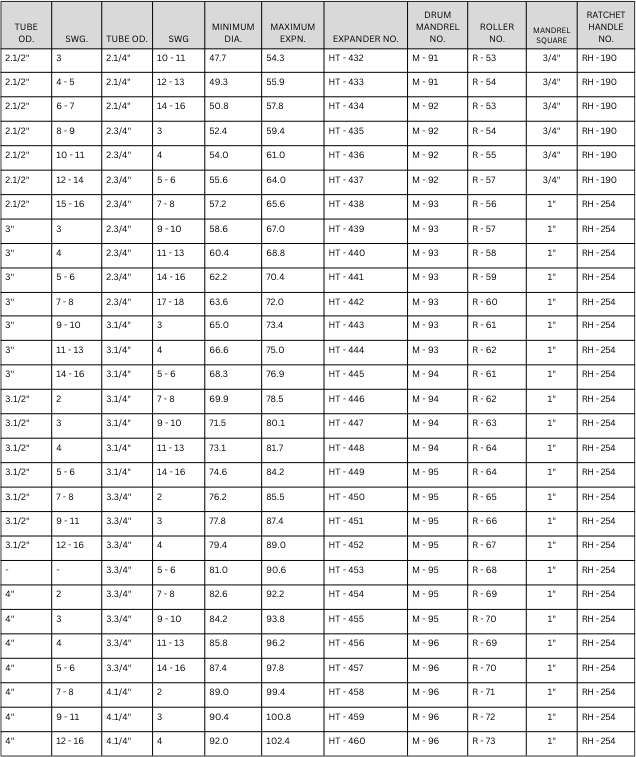

HT - 400 SERIES 3 ROLLER PARALLEL EXPANDERS FOR BOILERS, ECONOMISERS, SUPERHEATER, AIRHEATERS, JUICE HEATERS, PAN & EVAPORATORS
RANGE: 3/8" (9.5 mm)
This product generates better expansion results and often cover the widest range of
tube sizes and work well in many different applications. Expanders are supplied with an
adjustable collar for adjusting expansion length in various tube sheet thickness.
| RANGE |
FITTED WITH 3/4" (19.0) LG. ROLLER |
FITTED WITH 1 1/4" (31.7) LG. ROLLER |
|---|---|---|
| MINIMUM A. |
19.0 MM (1/4") |
31.7 MM (3/4") |
| MINIMUM B. |
76.2 MM (3/4") |
88.9 MM (1/4") |
.png)
