Product

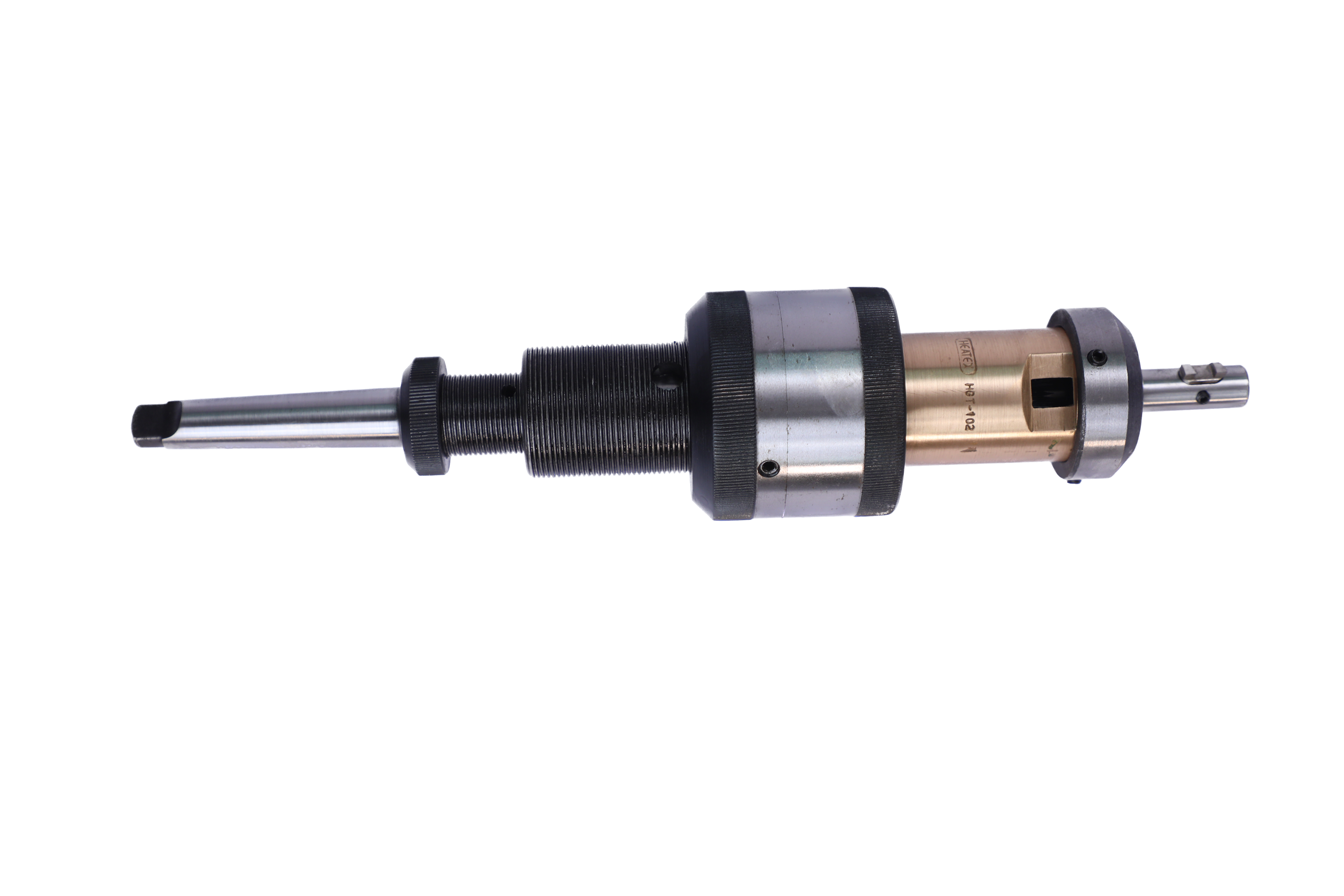

GROOVING TOOLS

GROOVING TOOLS

For PRECISION GROOVING of Heat Exchanger tube sheets, boiler drums and headers

Features:

  • Accurate and Quick.
  • Automatic 2 in 1 Design.
  • Covers wide range of bores by simply changing cutters & pilot nose.
  • Can be used on CNC Machines, Drilling Machines, Turret Lathes, Boring Machines and almost all unconventional Machines Via Morse Taper.
  • Easy to adjust Length & Depth of cut.
  • Advantage of using of cutting tool after Re-sharpening.
  • Recessing Tools can be used in either static or/and dynamic conditions similar to Twist Drill.

    • Operations

    HEATEX - Grooving tools having a two-in-one standard design are used to accurately and quickly perform time saving operations which are cost effective on all unconventional machines incorporating an Eccentric Principle.The depth of cut is accomplished by a lead ratio is approx. 4:1.

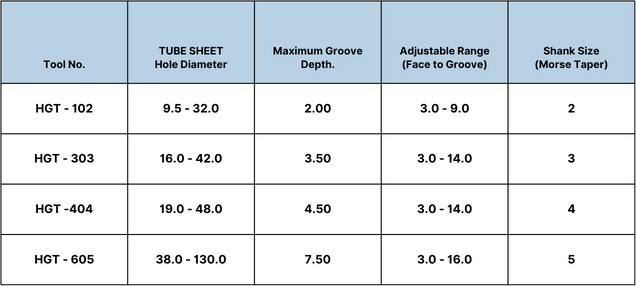

    Tool Specifications:

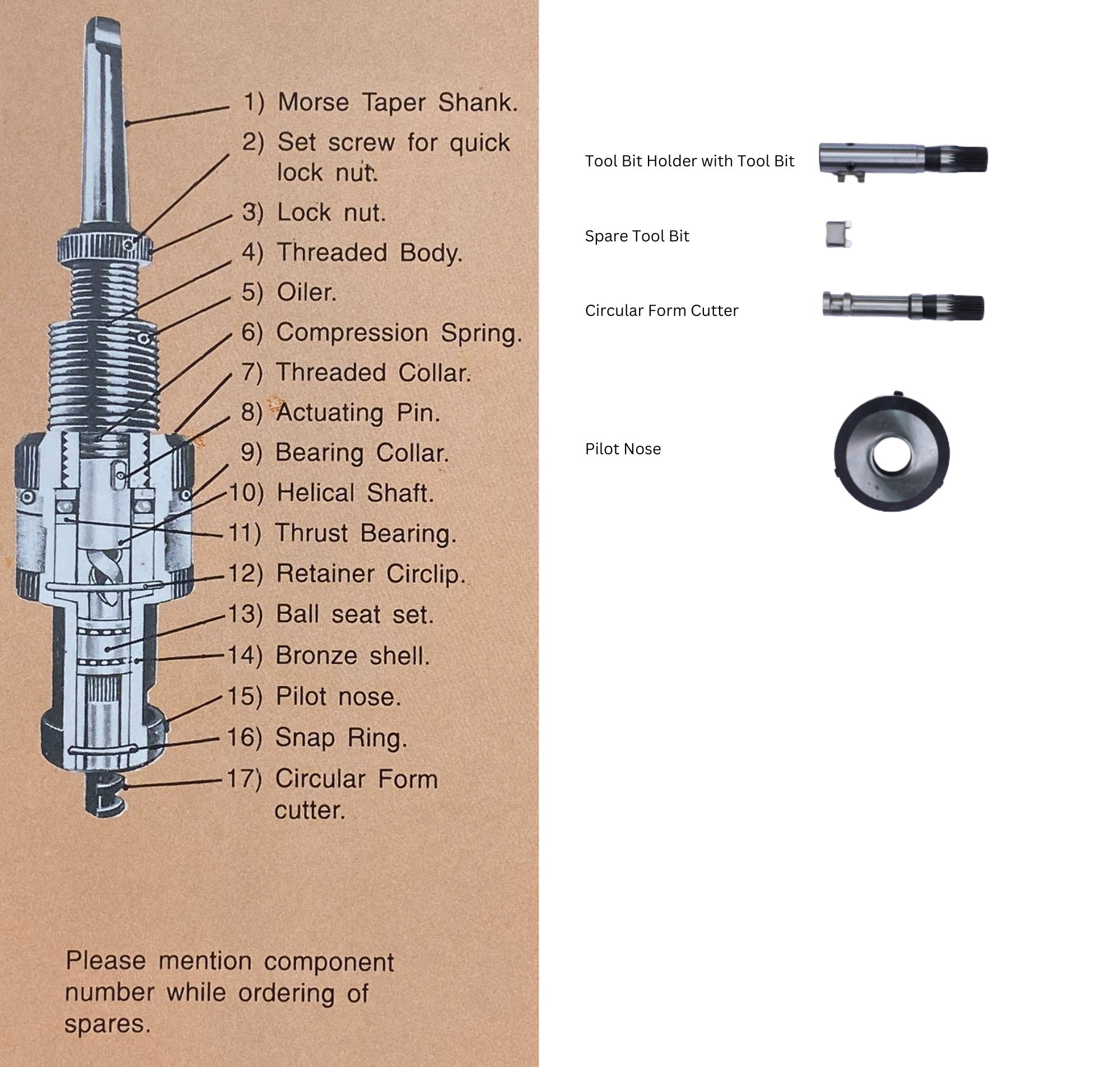

    Sectional View:

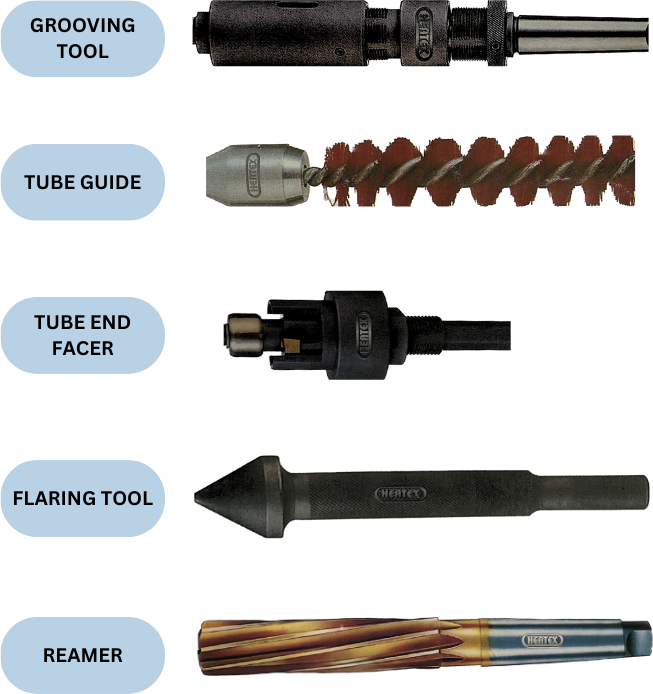

    TUBE PROCESSING TOOLS

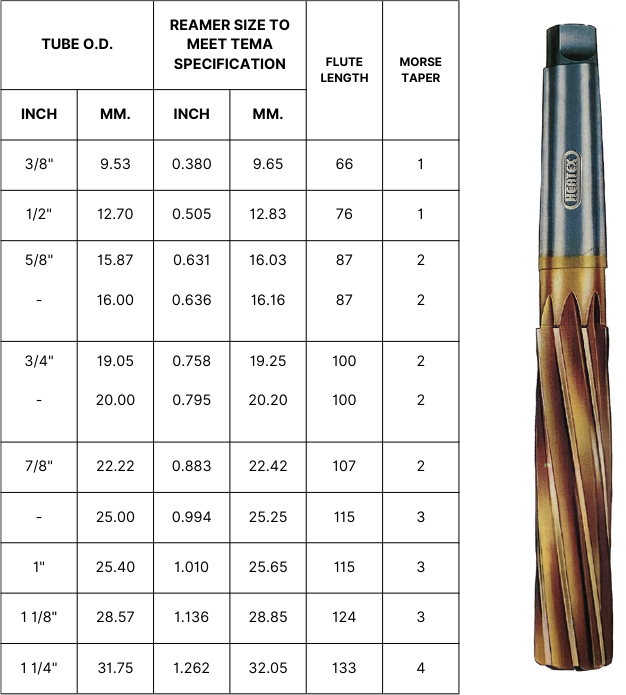

    TUBE SHEET - HOLE REAMERS


    HEATEX HIGH SPEED STEEL CRYO PROCESSED LONG FLUTED MACHINE REAMER TO IS:5445 HAVING VIRTUALLY PARALLEL CUTTING EDGES WITH BEVEL LEAD INTEGRAL WITH TAPER SHANK, IDEAL FOR THE SMOOTH AND ACCURATE REAMING OF CLEARANCE IN HOLES TUBE SHEETS.

    Condenser and Heat Exchanger Tube Sheet Reamers to meet 'TEMA' specification.

    Cyro processed reamers increase on Life 200 - 300% more

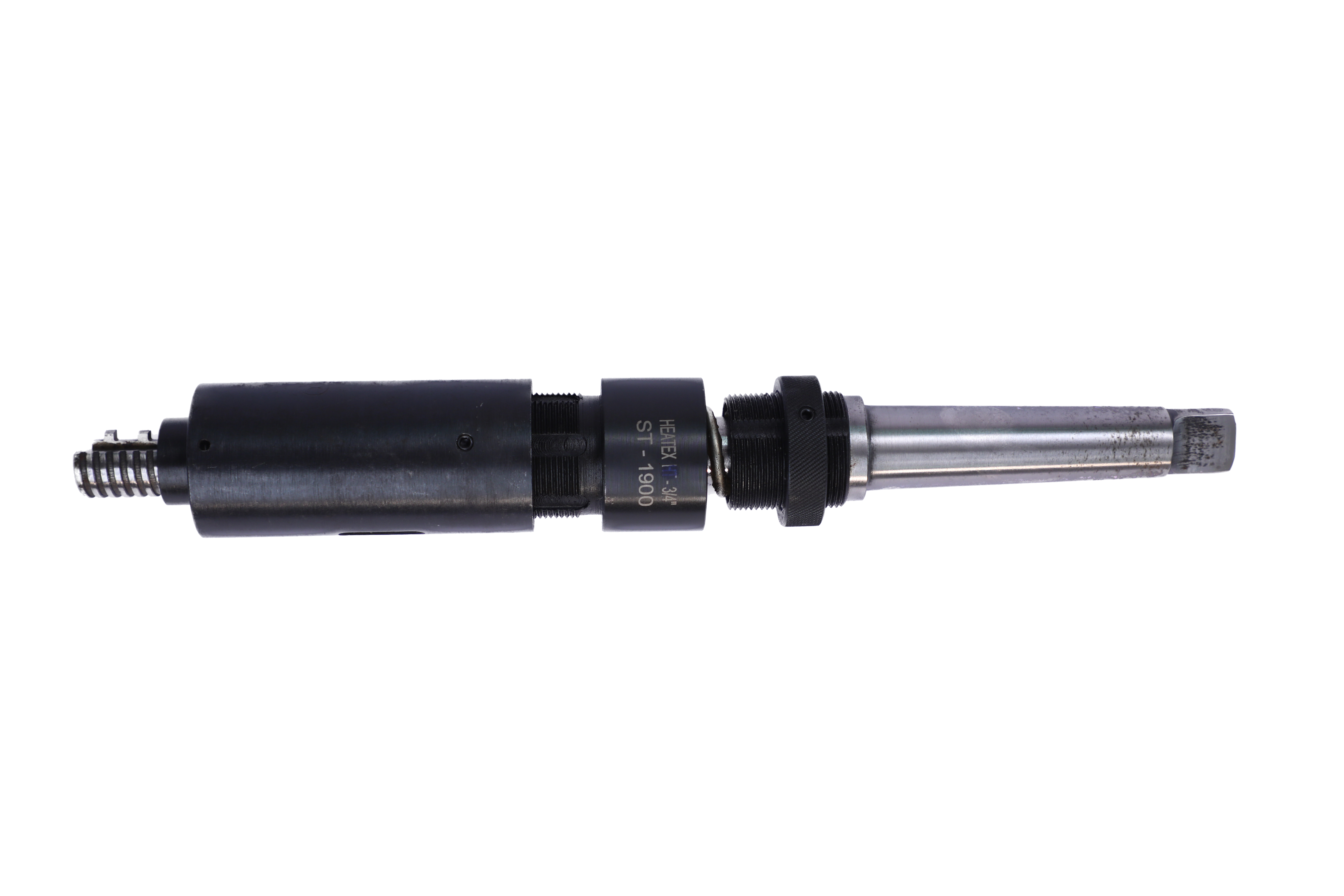

    GROOVING TOOLS (SERATING TOOLS)

    For machining Grooves in tube sheet holes of Heat Exchanger / Condenser Tube Sheets.

  • Compact design permits the tool to be easily used on portable drives.
  • Interchangable standard cutting tools to suit all models.
  • Only light pressure is required to cut precision Grooves.
  • Simple fast and accurate adjustments for locating the grooves and controlling the depth of cut are incorporated.
  • Designed to use with CNC Machines.

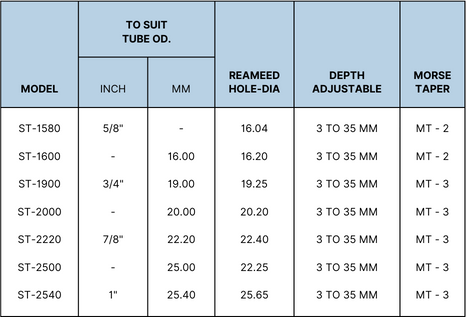

    • SPECIFICATIONS:

    Tube Guide (Pilot)

    THE PLUG CONSISTS OF AN ALUMINIUM TAPERED NOSE WITH A REPLACEABLE NYLON BRUSH ATTACHED. FOR EASY INSERTING OF TUBES REQUIRED TO PASS THROUGH TUBE SHEETS & BAFFLE PLATES. SIZE AVAILABLE 1/2" OF TO 2" OD TUBES.

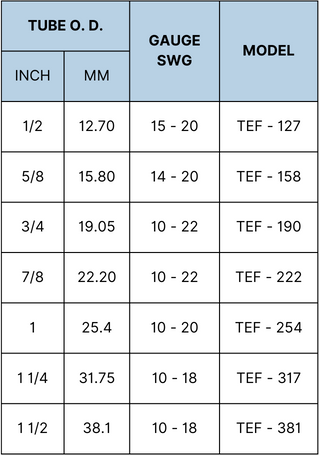

    TUBE END FACERS

    THIS TOOL IS SUITABLE FOR FACING TUBE ENDS FLUSH TO THE TUBE SHEET BY THE ADDITION OF A SHROUD WILL TRIM TUBE ENDS WHICH PROJECTS FROM TUBE SHEET.BY CHANGING THE PILOT BUSH THE TOOL CAN BE ADAPTED TO SUIT ANY PARTICULAR GAUGE FOR A SPECIFIC SIZE.

    FACERS SUPPLIED WITH HEAXGONAL SHANK FACERS ALSO AVAILABLE WITH ROUND SHANK AND MORSE TAPER / SQUARE SHANK.

    FLARING TOOLS

    FOR FLARING OF TUBE PROJECTION AFTER EXPANSION.SIZE AVAILABLE 1/2" OD TO 1 1/2" OD.



    TUBE MAINTENANCE TOOLS

    MACHINE OPERATED INTERNAL TUBE CUTTER (PUSH TYPE)

    HEATEX Machine operated tuber cutter cuts away fast and accurately through the walls of tubes in Condensers and Heat Exchangers as a step in their removal from the tube sheets. forward pressure in motor causes cutter to extend nearly serving of tube. Closely coupled cutter bit can be changed quickly and easily. Driven by standard electric or pneumatic motor.

    SPECIFICATIONS

    Standard Reach 4 1/2" Specify of bits for ferrous / nonferrous

    MANUAL ONE REVOLUTION INTERNAL TUBE CUTTER

    For cutting nonferrous Tubes in Heat Exchangers, Condensers, Boilers. Adjustable 2" to 8". Tools Designed for Manual operation employing Ratchet or Hand wrench of proper size to fit the square drive of the cutter

    SIZE & SPECIFICATIONS

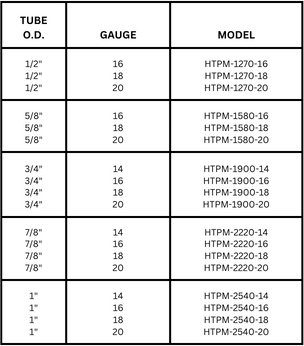

    MANUAL TUBE PULLER

    ECONOMICAL MANUAL TUBE PULLER PROVIDES EASY METHOD FOR FASTER TUBE REMOVAL.

    SIZE & SPECIFICATIONS



  • EASY TO USE: Manual insertion of spear into tube requires a Hand Wrench, Removing the Tube also requires a Hand Wrench.
  • NO EXTERNAL POWER: Manual operation eliminates the need for air or Electricity making the Tube Puller ideal for service application.
  • DURABALITY: The two major components are machined from High quality steel that heat treated for extra long service life.

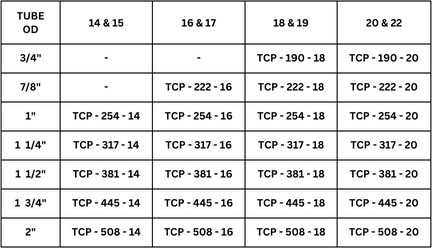

  • The ring-and-pin type plug, is designed to seal off leaking or damaged tubes in heat-exchangers and condensers. It ensures a uniform joint without damaging the tube-sheet.
  • Place the ring in the tube then force the pin into the ring with a few sharp blows from a hammer until a tight seal is made between the ring and the tube bore.
  • These plugs can be supplied in brass, steel or stainless steel for tubes in the range 1/2" (12.7 mms) to 1¼" in (31.75 mms) O.D.
  • The solid type tube plug is used to seal off a leaking or damaged boiler tube. Because it is made in one piece it is more robust and will withstand the substantial pressure of the boiler.
  • As with the ring-and-pin, a few sharp hammer blows will effectively seal off the tube.
  • These plugs are supplied in steel for tubes in the range 1¼" (31.75 mms) to 3" (76.2 mms) 0.D.

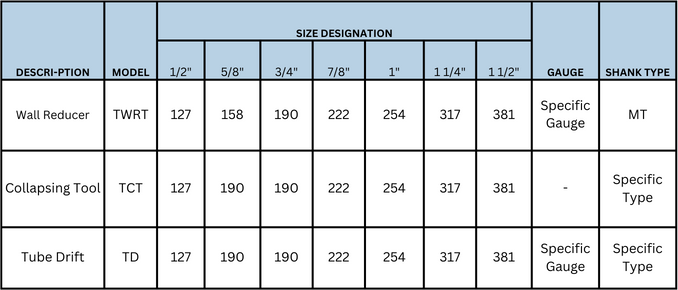

    • WALL REDUCING TOOL, DRIFTS & COLLAPSING TOOLS

    TUBE WALL REDUCING TOOLS


    The first stage in removal of a Tube is the reduction of the rolled portion of the Tube in the Tube Sheet. This tool enables the operation to be performed, the pilot maintaining the alignment in the Tube Bore. The Tube can be removed with the knock out tools.

    TUBE DRIFTS (KNOCK OUT TOOLS)


    These tools are designed to use with either Hammer or pneumatic Hammer. The pilot diameter is accurately machined to locate in the Tube ID whilst the main body of the Tools forces the Tube away from Tube Plate.

    TUBE COLLAPSING TOOL


    These Tools are used as collapsing Tubes in the Tube Sheet and are used with either manual Hammer or pneumatic Hammer.
