DAIRY TUBE EXPANDERS
APPLICATIONS:
DAIRY TUBE EXPANDERS ARE USED FOR EXPANSION OF STAINLESS STEEL TUBES OVER WHICH SLIP ON FITTINGS ARE PLACED.
THESE EXPANDERS ARE DESIGNED WITH 4/5 ROLLERS AND ARE PROVIDED WITH THRUST BEARING TO PREVENT DISTORTION OF TUBE ENDS AND FOR SMOOTH EXPANSION OF THIN GAUGE STAINLESS STEEL TUBES AND BENDS.

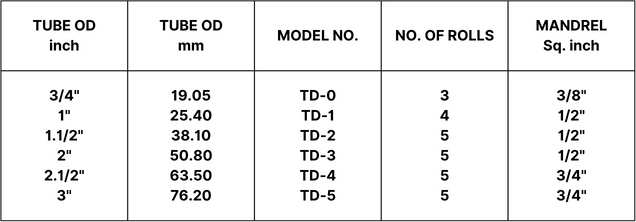

EXPANDERS AVAILABLE FOR 14, 16 AND 18 G THK TUBES.
CLAMP BLOCK SUB ASSEMBLY
THE SLIP ON FITTINGS ARE FITTED ON S.S. PIPES, BENDS AND TEES BY HOLDING THESE IN SPLIT DIE OR CLAMP BLOCK WITH COUNTER BORE FOR FITTINGS. THIS CLAMP BLOCK ASSEMBLY IS USED TO RESIST THE PRESSURE CREATED BY THE EXPANDING ACTION OF THE TOOL. THESE CLAMP BLOCKS ARE AVAILABLE IN I.D.E., S.M.S. AND D.I.N. STANDARD.

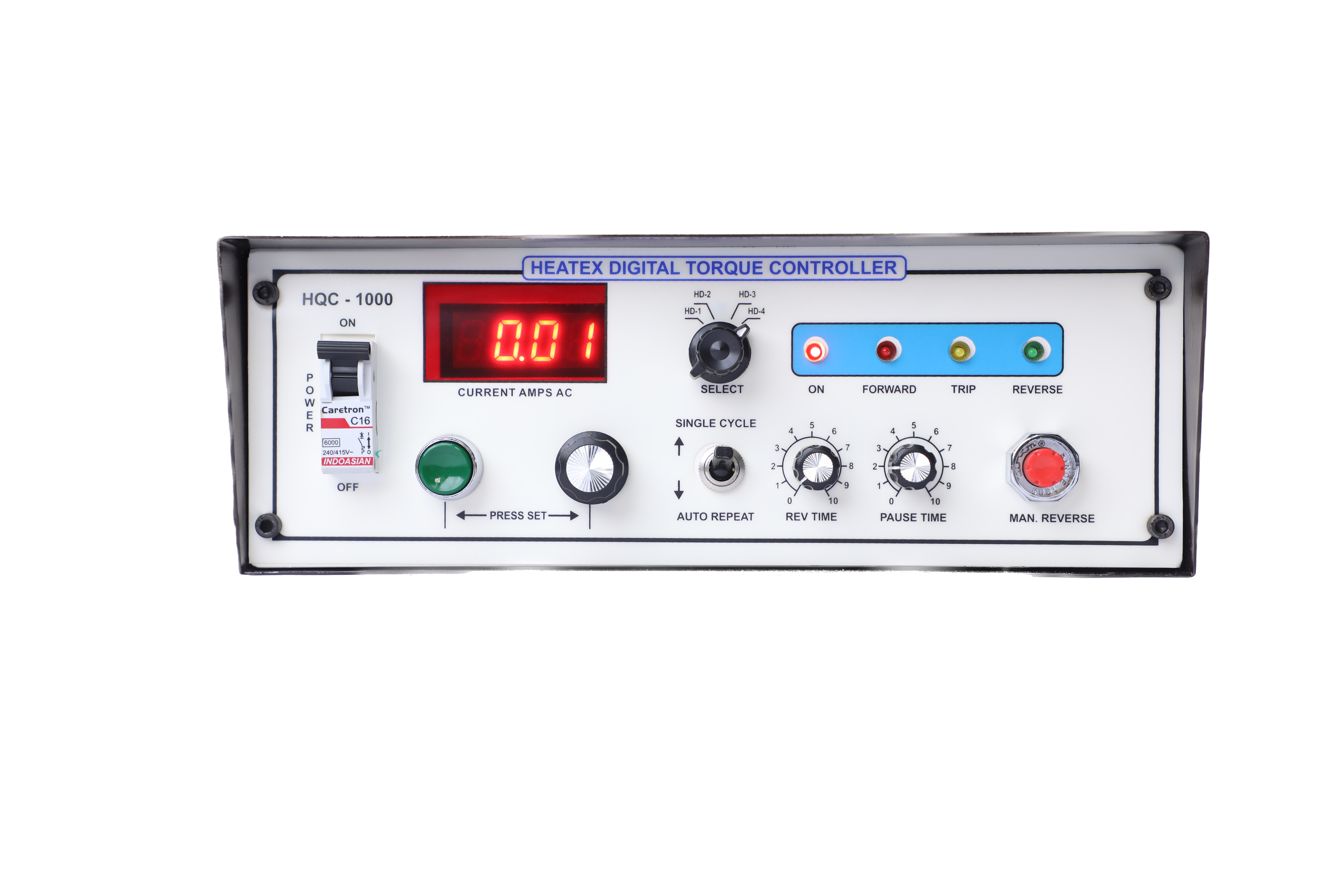

HEATEX FULLY AUTOMATIC DIGITAL TORGUE CONTROLLER FOR CONSISTENTLY PERFECT ROLLING
MODEL: HQC - 100/98, RANGE: 1/4" TO 2 1/2" (6.35 TO 63.5 MM) OD TUBES

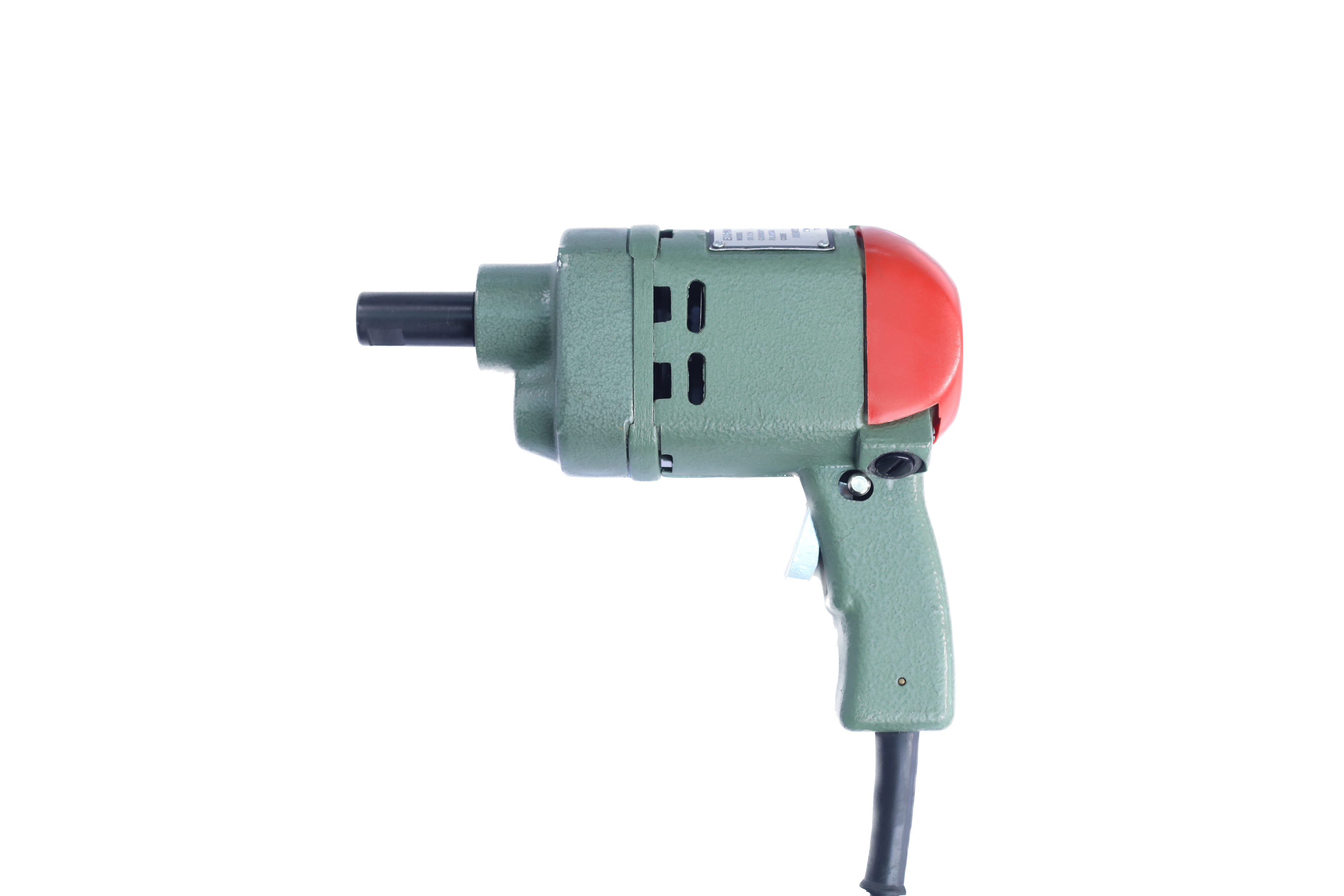

Drive Unit (Model No. HD-1)

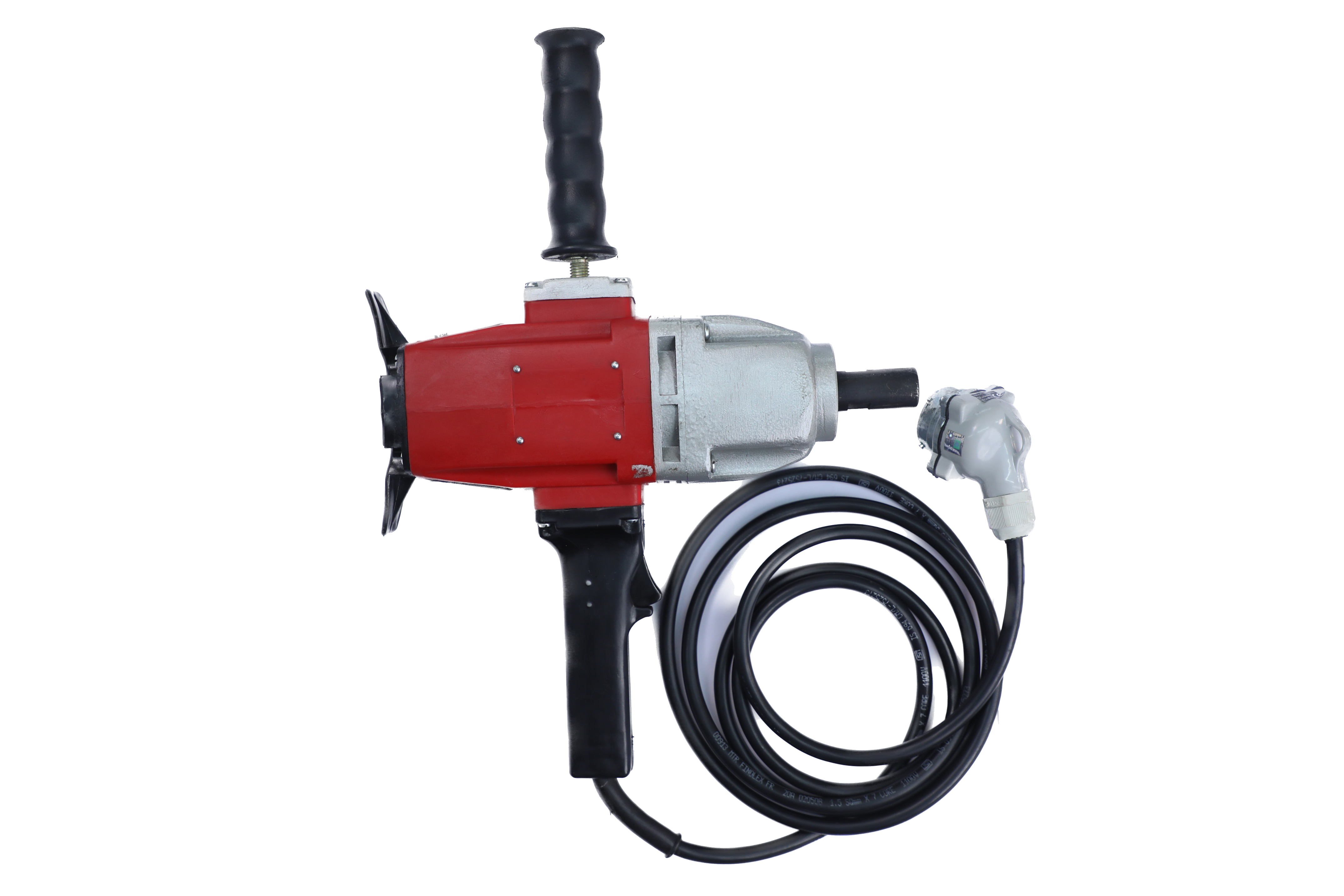

Drive Unit (Model No HD-2)

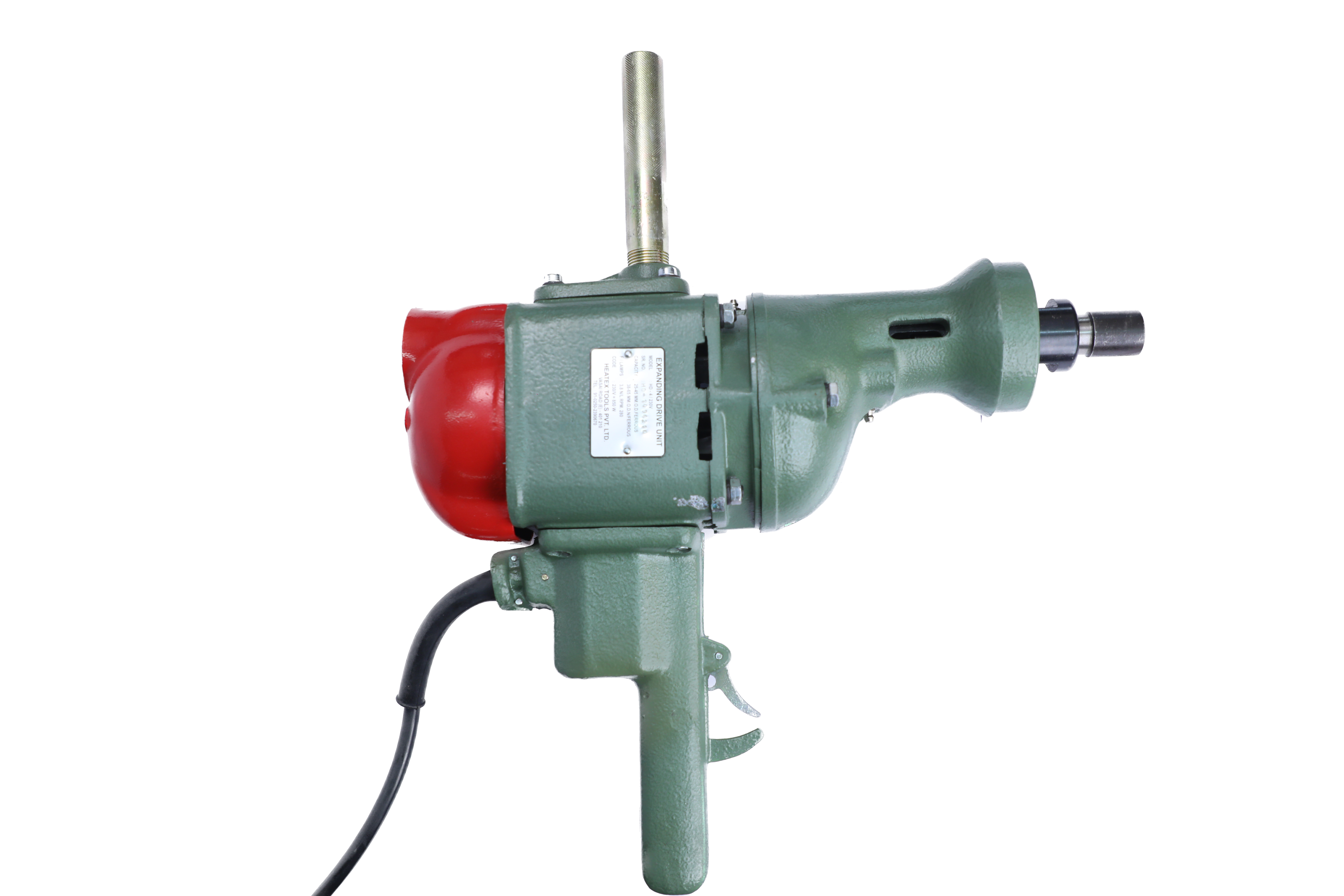

Driver Unit (Model No. HD-3)

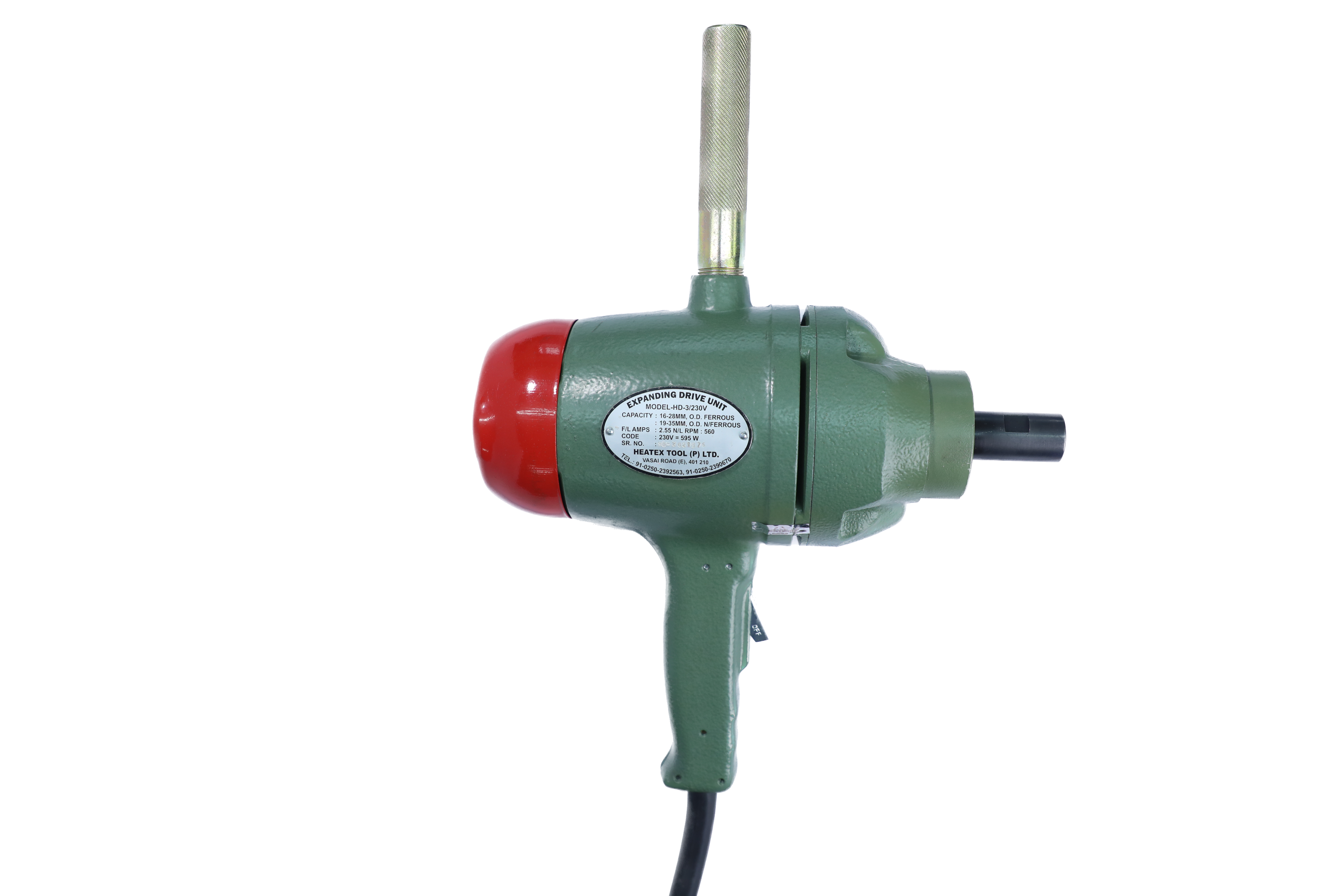

Driver Unit (Model No. HD-4)
HEATEX FULLY AUTOMATIC SOLID STATE ELECTRONIC TORQUE CONTROLLED TUBE EXPANDING MACHINES
HEATEX FULLY AUTOMATIC SOLID STATE ELECTRONIC TORQUE CONTROLLED TUBE EXPANDING CONTROLLER IS ELECTRICAL AND IS BASED ON THE FACT THAT UNDER EQUAL CONDITIONS THE SAME AMOUNT OF TORQUE TRANSMITTED TO AN EXPANDER GIVES THE SAME AMOUNT OF EXPANSION IN TUBES OF IDENTICAL SIZES, GAUGE AND MATERIAL.
THE CONTROL UNIT CONSISTS OF AN ELECTRICAL CIRCUIT, WHICH ACCURATELY MEASURES THE AMOUNT OF CURRENT TO THE DRIVE UNIT, PROVIDES PRECISE REGULATION OF THE DRIVE UNIT.
THE DRIVE UNIT IS A UNIVERSAL ELECTRIC DRILL TYPE MACHINE. THE MACHINE IS REVERSIBLE. THE CONTROL UNIT ACCURATELY MEASURES THE CURRENT VALUE, THUS LIMITING THE TORQUE AT THE MANDREL OF THE TUBE EXPANDER.

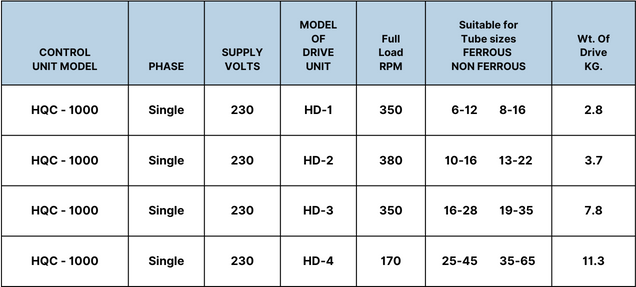

SELECTION PROCEDURE
FOR TUBES BEYOND 45 mm SIZE, HIGHER CAPACITY, THREE PHASE, TUBE-EXPANDING MACHINES ARE ALSO AVAILABLE.
